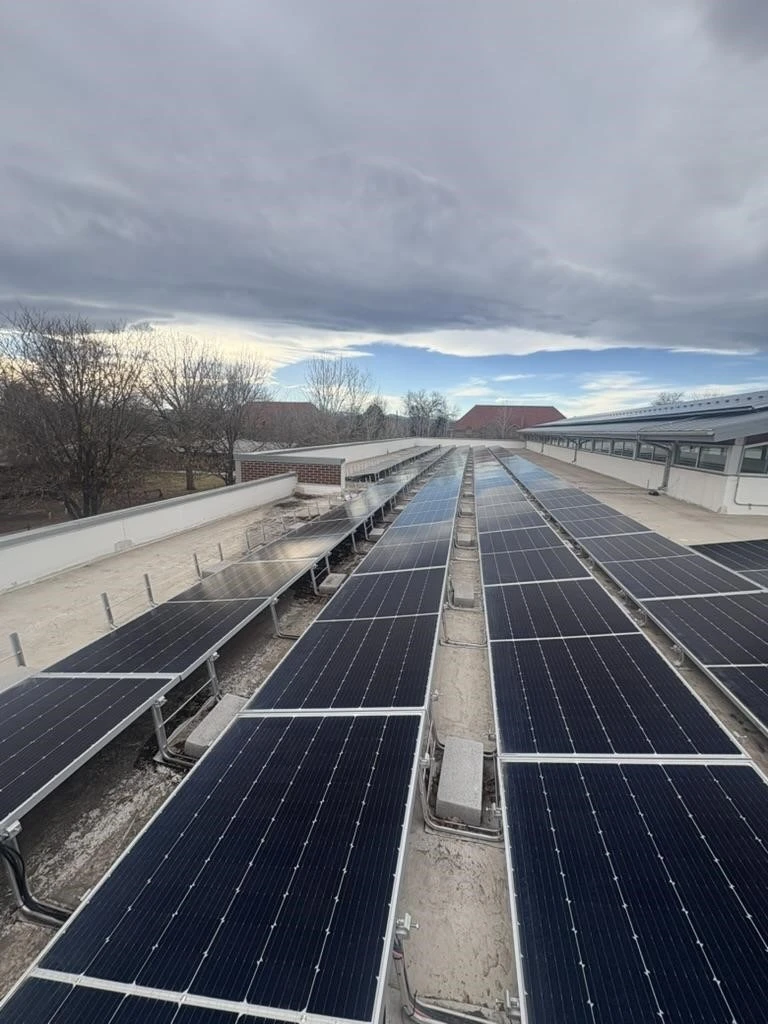

Commercial solar panel repair in Castle Rock starts with finding the right module. On a commercial roof, that can mean one panel out of hundreds. A failed solar panel rarely looks broken from the ground. It usually just produces less than the panels beside it.
A 2019 report on PV degradation explains why. Its authors, at the National Renewable Energy Laboratory (NREL), show imaging can reveal cracked cells behind intact glass. Hot spots and failed diodes hide too.
So ARE Solar doesn’t stop at a visual check. We read heat, voltage, and current together, then decide what the module needs.
Read the Heat Pattern First
Thermal imaging shows abnormal temperature patterns that can point toward electrical or module-level faults. The shape of the heat tells us where to look next. IEA PVPS review of field imaging describes the patterns inspectors use.
One square cell running hotter than its neighbors points to that cell. .A block of cells running warmer points to a bypassed substring and its diode. That block is usually about a third of the module. A small, intense point of heat is a classic hot spot. A uniform module-level thermal pattern can be consistent with an offline or disconnected module. Electrical testing should still confirm the cause.
NREL’s 2019 report adds the mechanism. Small defects inside a cell, called shunts, can heat up above the surrounding material. Lab thermal imaging picks them up. A hot junction box puts the focus on the connections and diodes inside it.
To be real, an infrared image is not the final answer. It is a map. We still confirm with voltage, current, and the module’s place in the string.
Bypass Diodes: The Failure Behind Clean Glass
Most modern crystalline-silicon modules use bypass diodes in the junction box. They let current route around shaded or damaged cells. Without them, a shaded cell can be forced into reverse bias and overheat.
A DOE-funded NREL study of bypass-diode reliability tested how heat affects those parts. It found that restricted heat dissipation makes diodes run at elevated temperatures. The worst-cooled junction box showed diodes with obvious degradation or failure.
That matters on a commercial roof in a Castle Rock summer. Many conventional modules divide their cells into multiple bypass-protected substrings. If one diode fails shorted, the affected substring may be bypassed. This reduces module voltage by roughly the share represented by that substring. A diode that fails open removes the protection entirely. Either way, the glass can look perfect.
Commercial Solar Panel Repair in Castle Rock Uses I-V Curves
An I-V curve traces a module’s current against its voltage. I-V curve testing is a widely used tool for evaluating PV performance and identifying electrical abnormalities. In the field, it shows how a module behaves under real sunlight. We test on a clear day and compare against the datasheet, corrected for temperature and light.
The shape of the curve carries clues. A step in the curve can point to a bypassed section. Lower current across the curve can point to shading, soiling, or cell damage. A shallower slope near open-circuit voltage can point to rising resistance in connections.
Solar panel troubleshooting in Castle Rock works from large to small. We trace the string first, then the suspect module. That order keeps good modules on the roof and gets the bad one off it.
How Wind Can Damage Commercial Solar Systems
A 2021 owner’s guide to PV weather vulnerabilities rates the risks. Lawrence Berkeley National Laboratory led it for DOE and GSA. It names wind “the most common damaging weather element” it covers. Fastener issues rank as “the most common and potentially serious vulnerability” in a system.
The guide explains the mechanism. Wind-induced vibration can contribute to loosening of inadequately secured threaded fasteners over time. If even one top-down clamp is loose, a module can work free. A failed mid-clamp can let the neighboring module dislodge too. Improperly supported wires rate as a high safety risk.
Castle Rock regularly experiences Front Range wind and severe-weather conditions. A healthy module can stop contributing because its mounting or wiring failed. So, we check clamp torque, wire support, and connectors before condemning the panel.
Rule Out the Look-Alikes Quickly
Snow, shade, and soiling can make a good module look failed. We covered those patterns in our Douglas County troubleshooting guide. [Internal link: Solar Panel Troubleshooting in Douglas County] The short version is simple. Temporary conditions such as snow, shade, or soiling can mimic hardware problems. So, technicians compare performance across changing conditions before concluding that a module has failed.
Hail is the exception worth planning for. DOE’s hail guidance recommends an IR, UV, or EL scan within one month of a hail event. Cracks under intact glass can spread over time.
Repair, Replace, or Keep Watching?
Cracked glass, burn marks, and exposed conductors are safety issues first. DOE’s hail guidance says to shut down a visibly damaged system until it’s inspected. If testing finds no safety or performance issues, cosmetic changes may only require monitoring.
Replacement gets complicated on older arrays. The original module may no longer be made. A replacement has to match voltage, current, dimensions, frame, connectors, and racking. In a series string, one mismatched module can reduce string output because the modules share the same string current.
Replacement work in the Town of Castle Rock also falls under its current codes. Those include the 2026 National Electrical Code, effective June 30, 2026. Sites outside Town limits fall under Douglas County. The county stays on the 2023 NEC until January 1, 2027. We confirm the permit path before the new module goes up.
Frequently Asked Questions
Can a solar panel fail without cracked glass?
Yes. Cracked cells, failed bypass diodes, and hot spots can all sit behind intact glass. Thermal imaging and electrical testing find what a visual check misses.
What does a hot junction box mean?
A warm junction box can be normal when part of the module is shaded. A conducting bypass diode runs warm. On an unshaded module, heat points to the connections or bypass diodes inside. That calls for electrical testing before the module goes back into service.
How do technicians find one bad module in a commercial array?
They compare string performance, read thermal patterns, then run I-V tests on suspect modules. That’s how a failed solar panel gets found without pulling good ones. Each step narrows the search.
Can one bad module affect the whole string?
It can. Modules in a series string share current, so a weak module can pull the string down. Bypass diodes limit that loss when they work.
Find the Weak Point Before It Costs More Production
A damaged panel does not always announce itself clearly. One weak module can sit inside a larger array and quietly drag down performance.
If your Castle Rock system shows uneven production, unexplained losses, or post-storm changes, contact ARE Solar for a closer look. We can compare module behavior, inspect the electrical path, and determine whether repair or replacement actually makes sense.
For commercial solar panel repair in Castle Rock, bring us the performance issue. We’ll help you find the weak point before it becomes a bigger one.
